Initial Price £984.50

Balance Hood

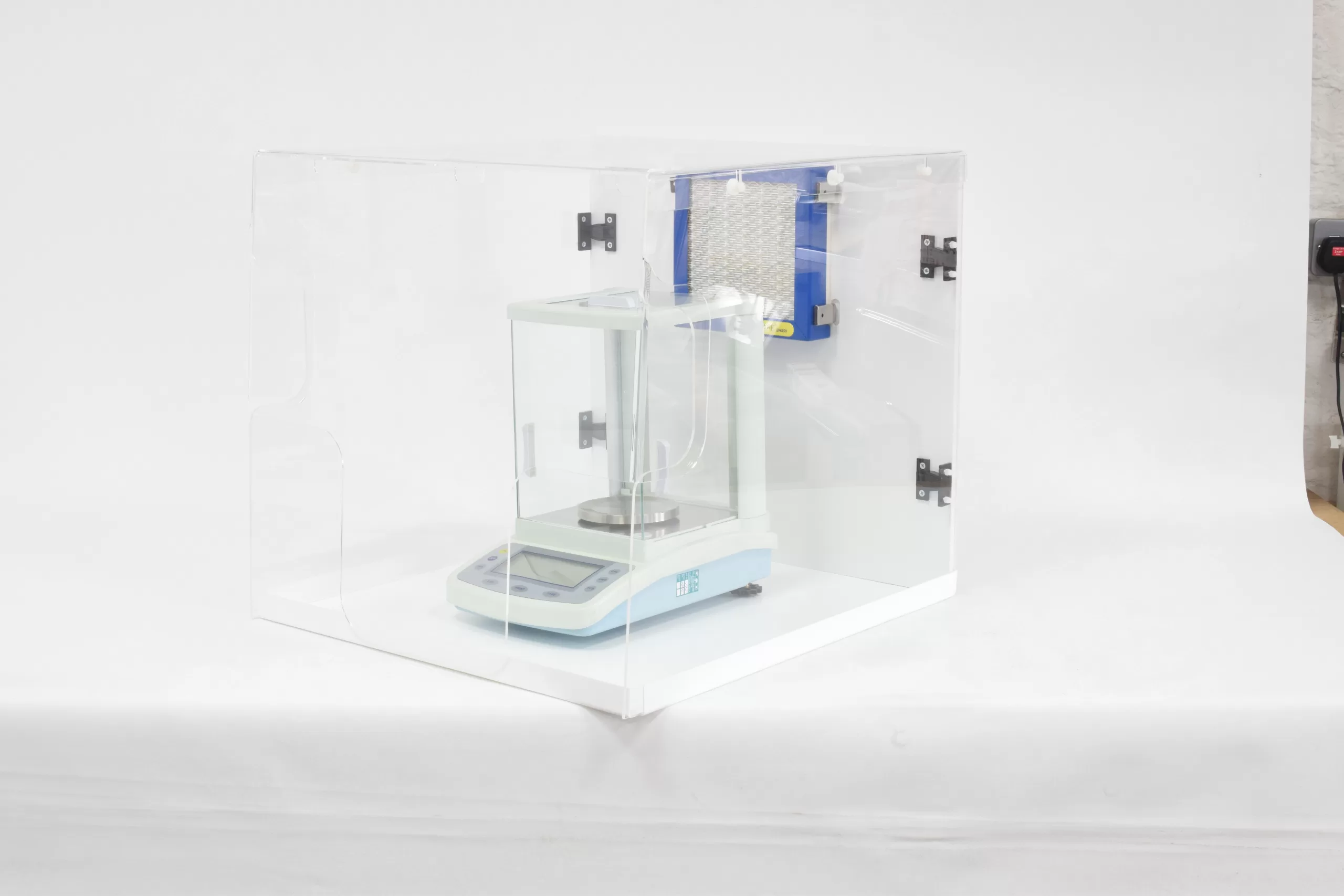

The BH550 (previously WS110) is a dual purpose extraction hood that protects personnel from nuisance media powders and also protects the balance from air turbulence.

The standalone unit is designed to easily fit onto most benchtops and is ideally suited for those in-between applications which are too small to necessitate a fume cupboard but benefit from improved containment.  It has very low air flow (20m3/h) and can be user configured.

The unit comes flat packed and is very easy to assemble.

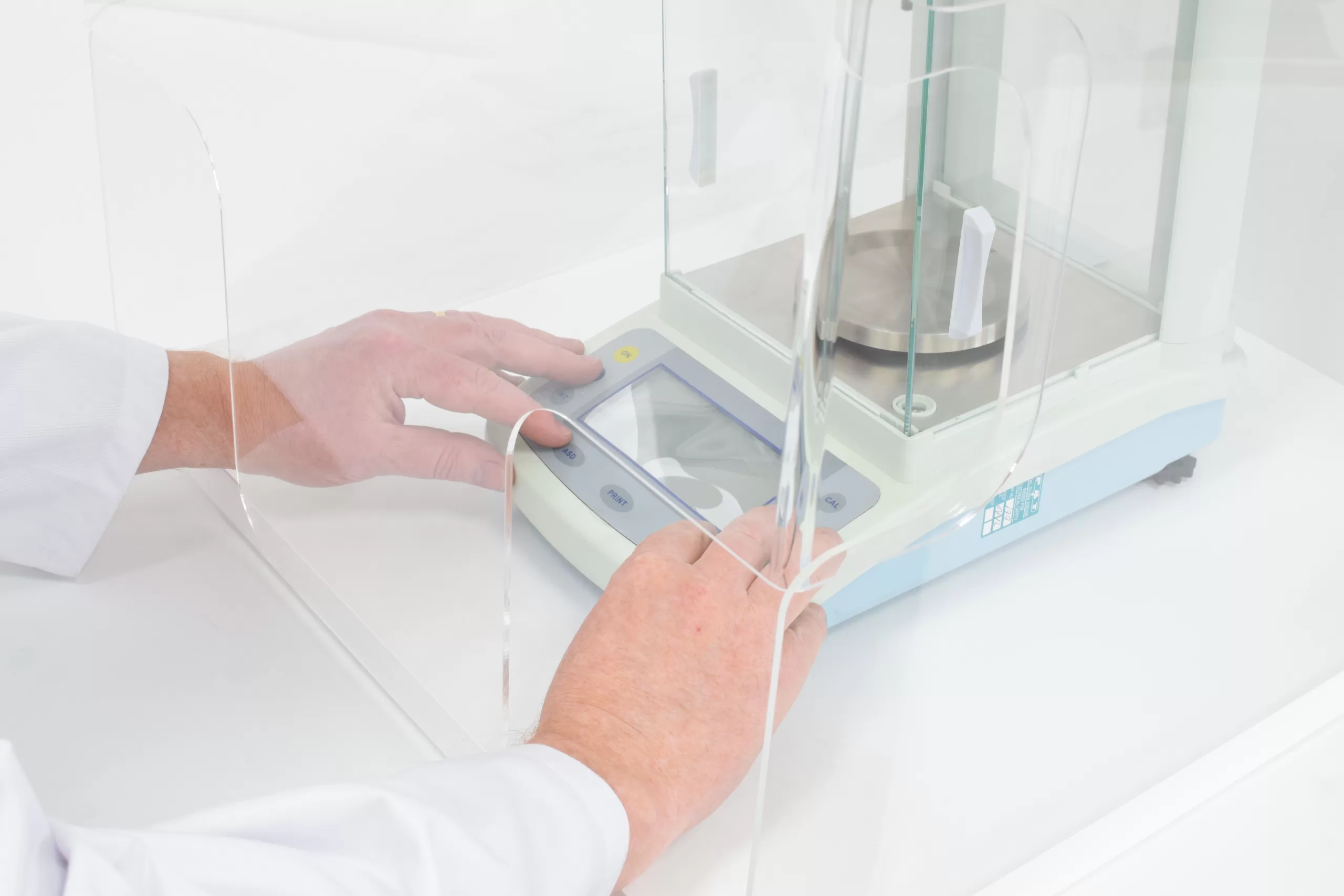

The Analytical front panel has a clear acrylic lift off front panel with arm access holes at the bottom. Usually chosen for use with analytical balances.

The Top Pan front panel has a clear acrylic lift off front panel with arm access holes halfway up the sides. Usually chosen for use with Top Pan balances.

BH550 Configuration Options Test

  • To be kept hidden
  • £ 0.00
    To be kept hidden

The BH550 is an ideal addition to any laboratory and has very little maintenance or running costs.

  • Ductless – air is filtered and clean air circulated back into the workplace
  • Waysafe 200 series E10 EPA filtration as standard

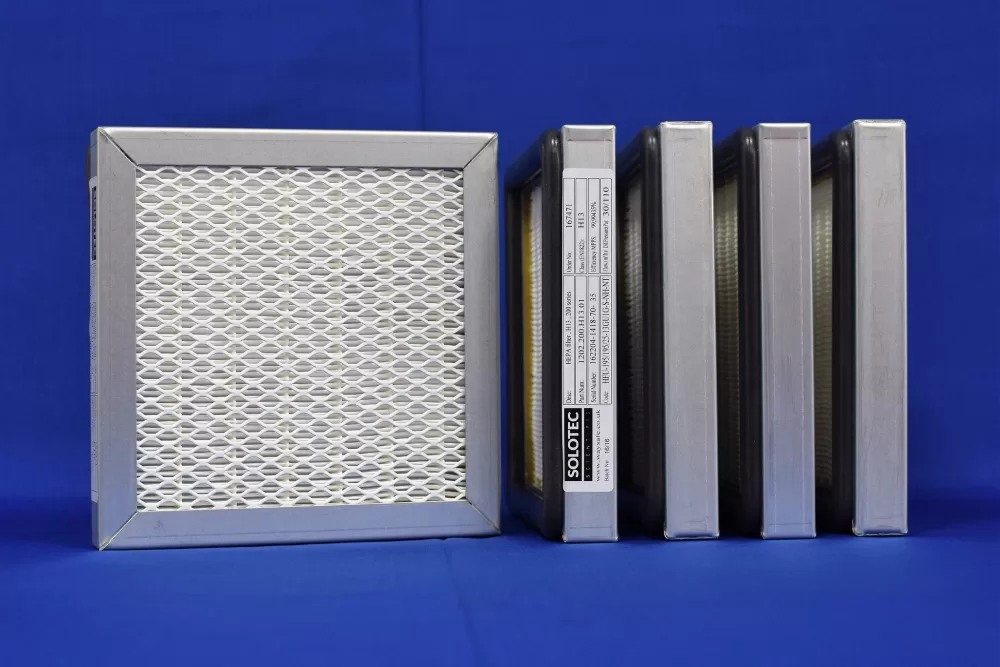

  • Upgrade to H13 HEPA filter (99.95% efficient) avaliable
  • All filters tested and certified to EN1822
  • Easy benchtop installation
  • Low maintenance
  • Low (20m3/h) air flow, can be user configured
  • Fast global delivery
  • Protects operators
  • Perfect for media weighing applications
  • Removable front panel for easy access
  • Made to order at our factory in the UK

All products are made to order and are despatched 5-10 days after payment, we will advise you if times differ from this

Additional information

Weight 28 kg
Dimensions 67 × 69 × 30 mm

230VAC 35w, meets LVD and is CE Marked (120VAC available)

Air Speed

Non-turbulent constant flow set at 20m3/h, but can be user configured to suit requirements

External Dimensions

Height 500mm, depth 651mm, width 550mm

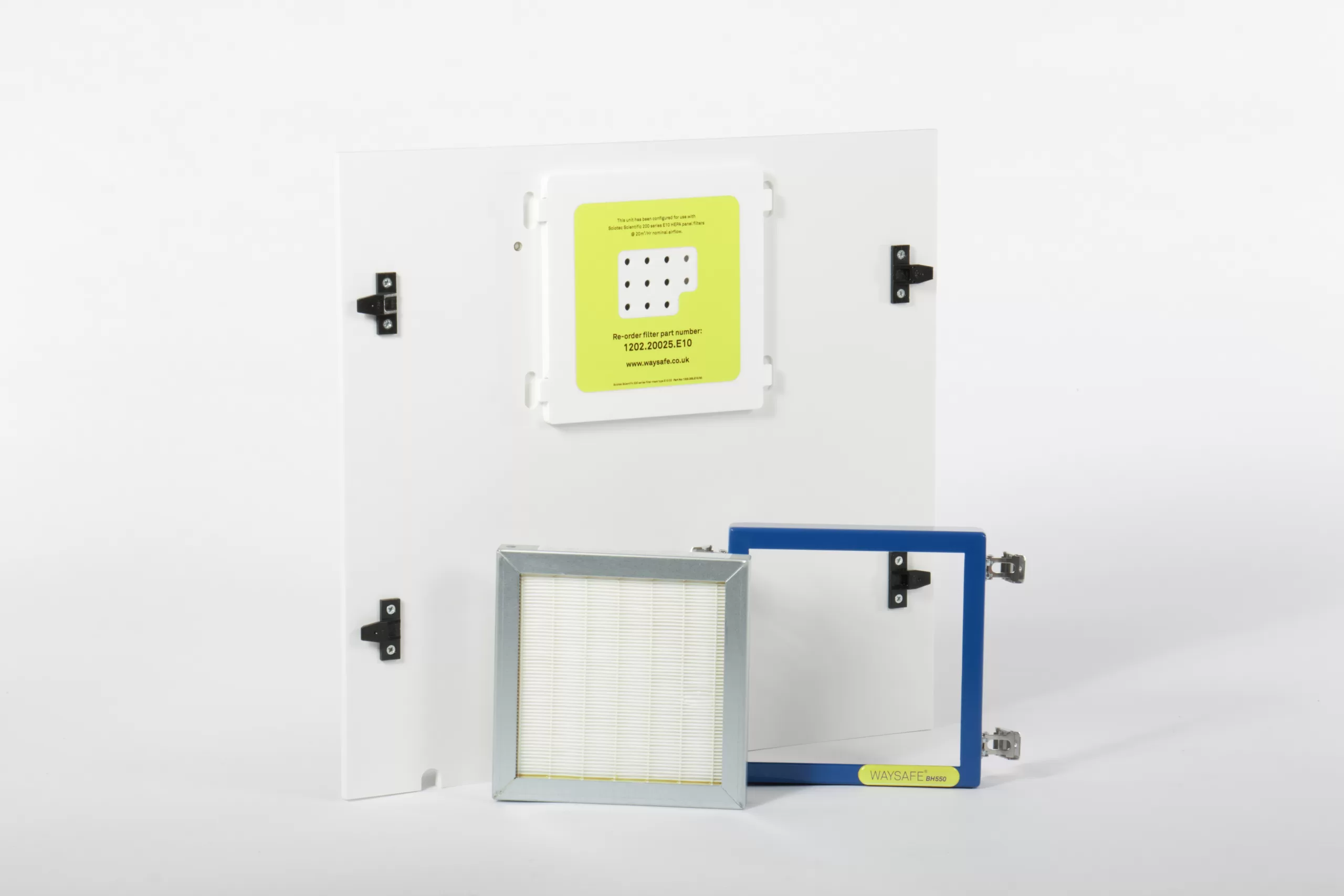

Waysafe '200 series' filter housing

Base Tray

White vacuum formed base tray


BaseHigh Impact Polystyrene
GlazingCast Acrylic Glazing
Backpanel10mm Food Grade PVC
Filter FramePower Coated Aluminium Frame
AncillariesDurable Polycarbonate Hinges
FilterChoice of E10 EPA or H13 HEPA filtration tested and certified to EN1822
ConfigurationTo suit top pan or analytical balances
Hours Run MeterElectro-mechanical, non-resettable run meter for filter and service monitoring
