Waysafe SA1000 microscope enclosure for asbestos

Large Sample Preparation Enclosure [SA1000]

Initial Price £1,976.00

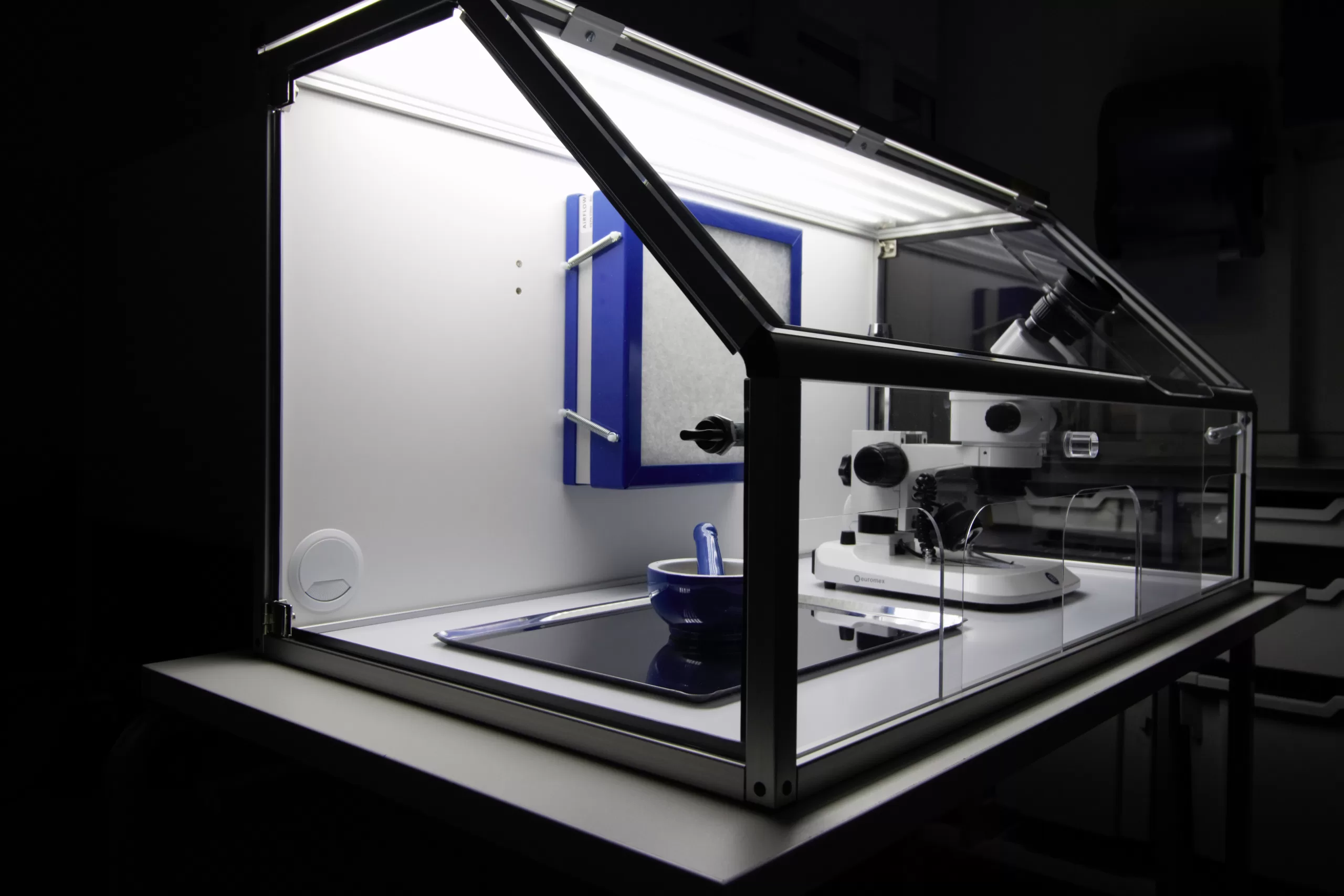

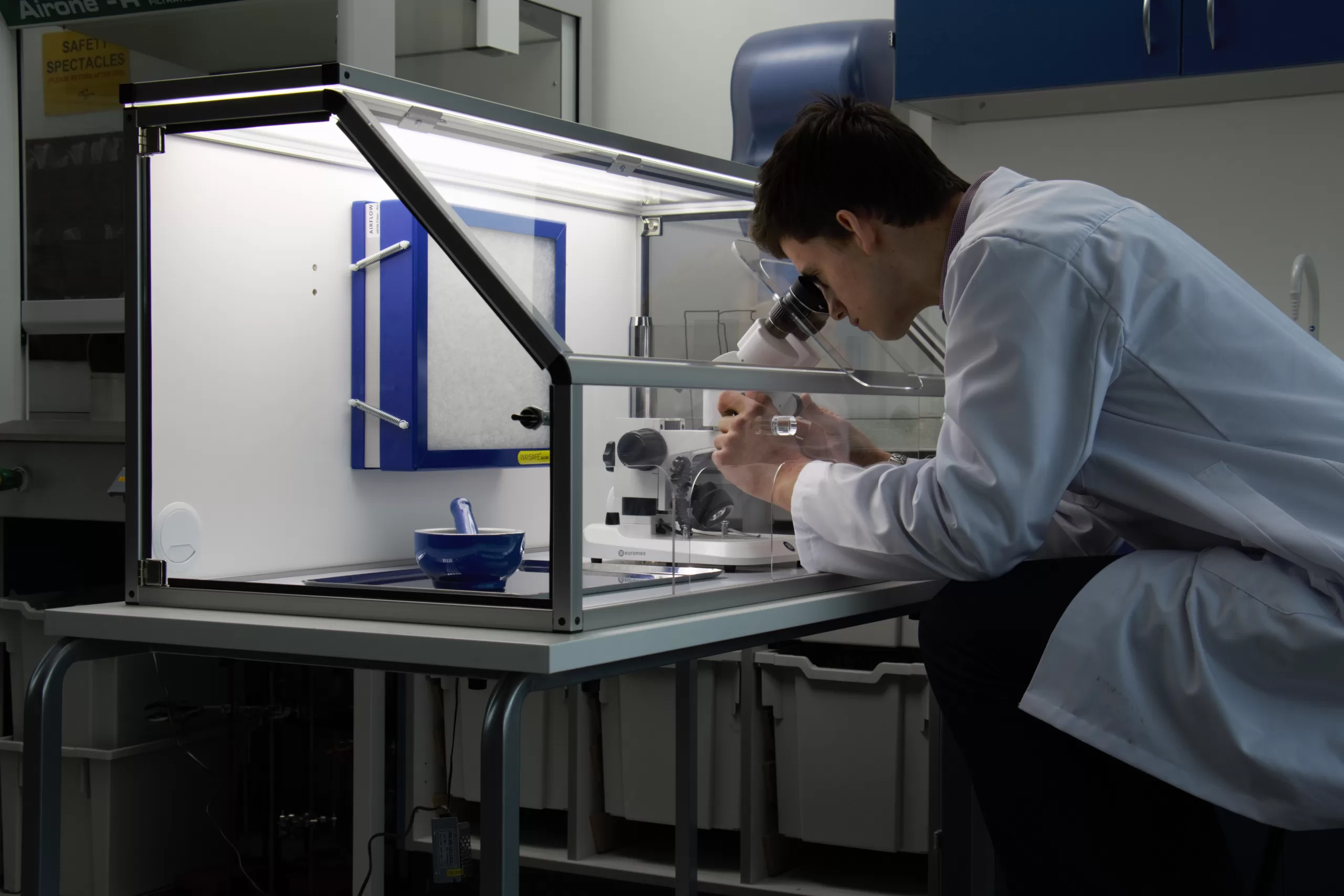

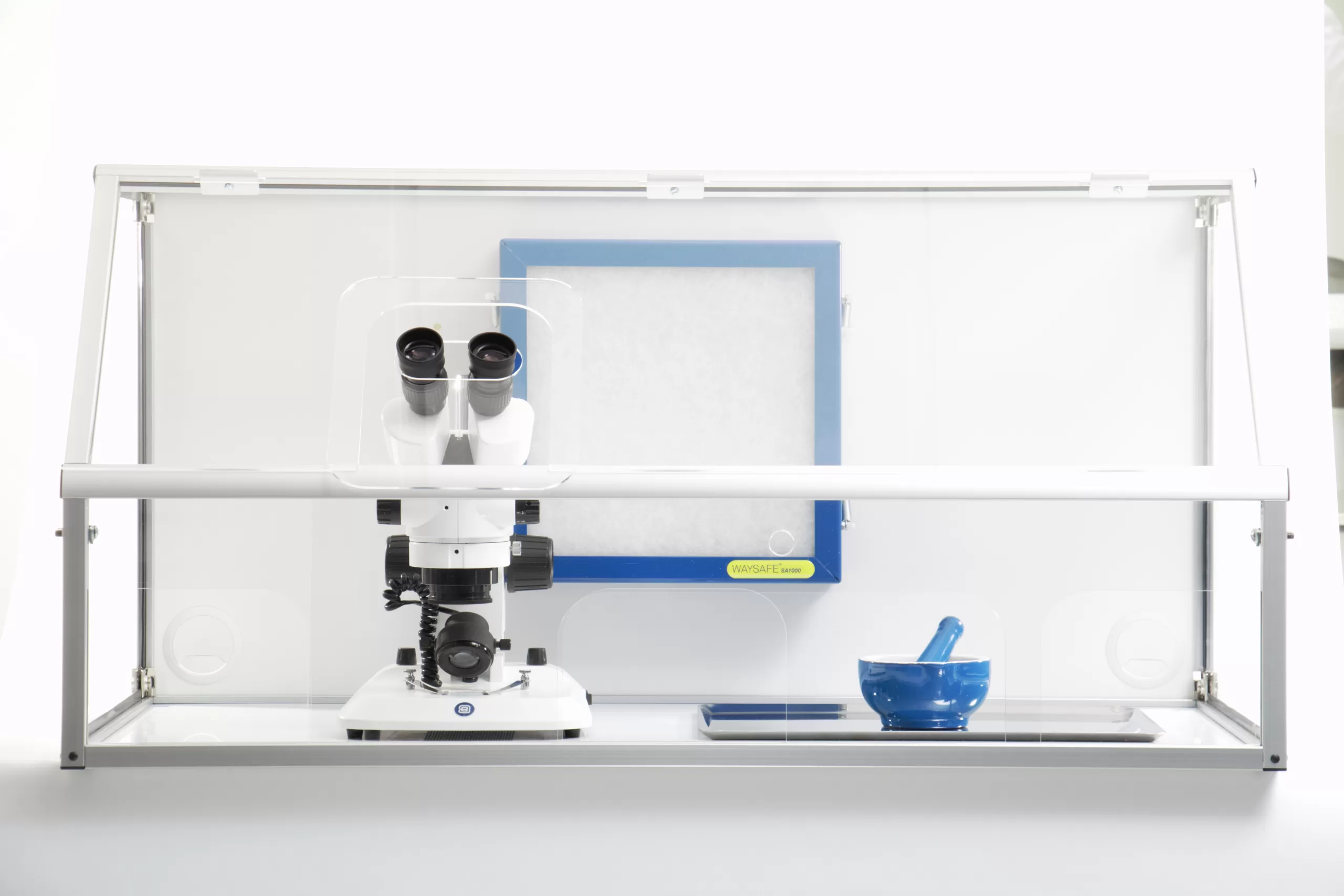

At 1000mm wide the SA1000 now gives ample space for both sample preparation and microscopy in the simple enclosure.

Our new, quieter, variable speed, EC fan draws air through our trusted 300 series H14 HEPA filter before returning it to the lab.

The reversible front panel allows left or right microscope positioning and the lower panel has three hand holes for operator access. Full sized side opening doors offer access for media loading and cleaning.

Categories: , , , , Tags: , , , , , , , , , , , , , , ,

SA1000 USER MANUAL
SA1000 DATA SHEET

  • Ductless – Air is filtered and clean air circulated back into the workplace
  • H14 HEPA filtration (99.999% efficient)
  • Easy benchtop installation
  • Low maintenance
  • Microscope can be left of right hand mounted
  • Less movement of samples
  • Variable fan control as standard
  • Fast global delivery
  • Protects operators
  • Perfect for asbestos and all sample analysis
  • Full size opening door at both ends
  • Made to order at our factory in the UK

All products are made to order and are despatched 5-10 days after payment, we will advise you if times differ from this

Additional information

Weight22.3 kg
Electrical

230VAC 50w, meets LVD and is CE Marked (120VAC available)

Air speed

Fully variable between 0.3 m/s – 0.9m/s face velocity (factory settings)

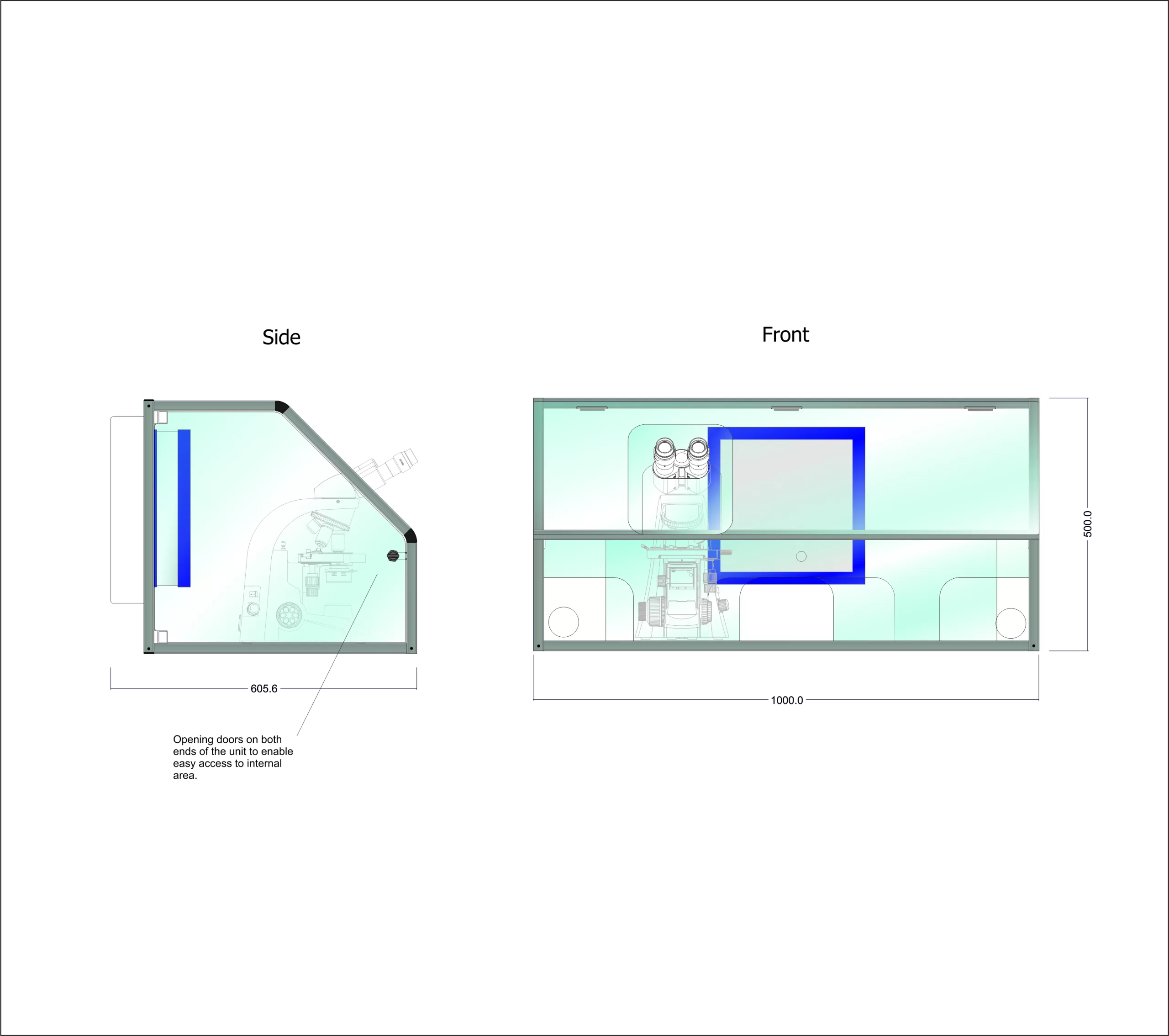

External Dimensions

Height 500 mm, depth 605mm, width 1000 mm
Not your size? Ask about bespoke… If you can think it we can make it!

Filter

Waysafe '300 series’ H1 4 HEPA filter, 99.999% efficiency @ 0.3 micron

Pre filter

Fitted as standard (simple low cost G4 grade filter pad protect the HEPA filter from large particles to extend service life)

Base tray

Integral white laminated base tray (see options)

Description

BaseAluminium Composite Basepanel
GlazingCast Acrylic Glazing
FrameDurable Anodised Aluminium
Filter FramePowder coated aluminium frame
AncillariesRubber seals, durable hinges

The SA1000 can be specified with different colour or stainless base panels, LED top light and combinations of HEPA and Carbon filters.

Built-in BaseVarious colour options including blue, red, white and stainless steel
Face PanelBespoke panels available to suit varying equipment types
LightWaysafe 'TL1000' series lightbox
FiltersVarious filter options include HEPA for particulates and carbons for odours
Hours run meterElectromechanical, non-resettable run meter for filter and service monitoring
