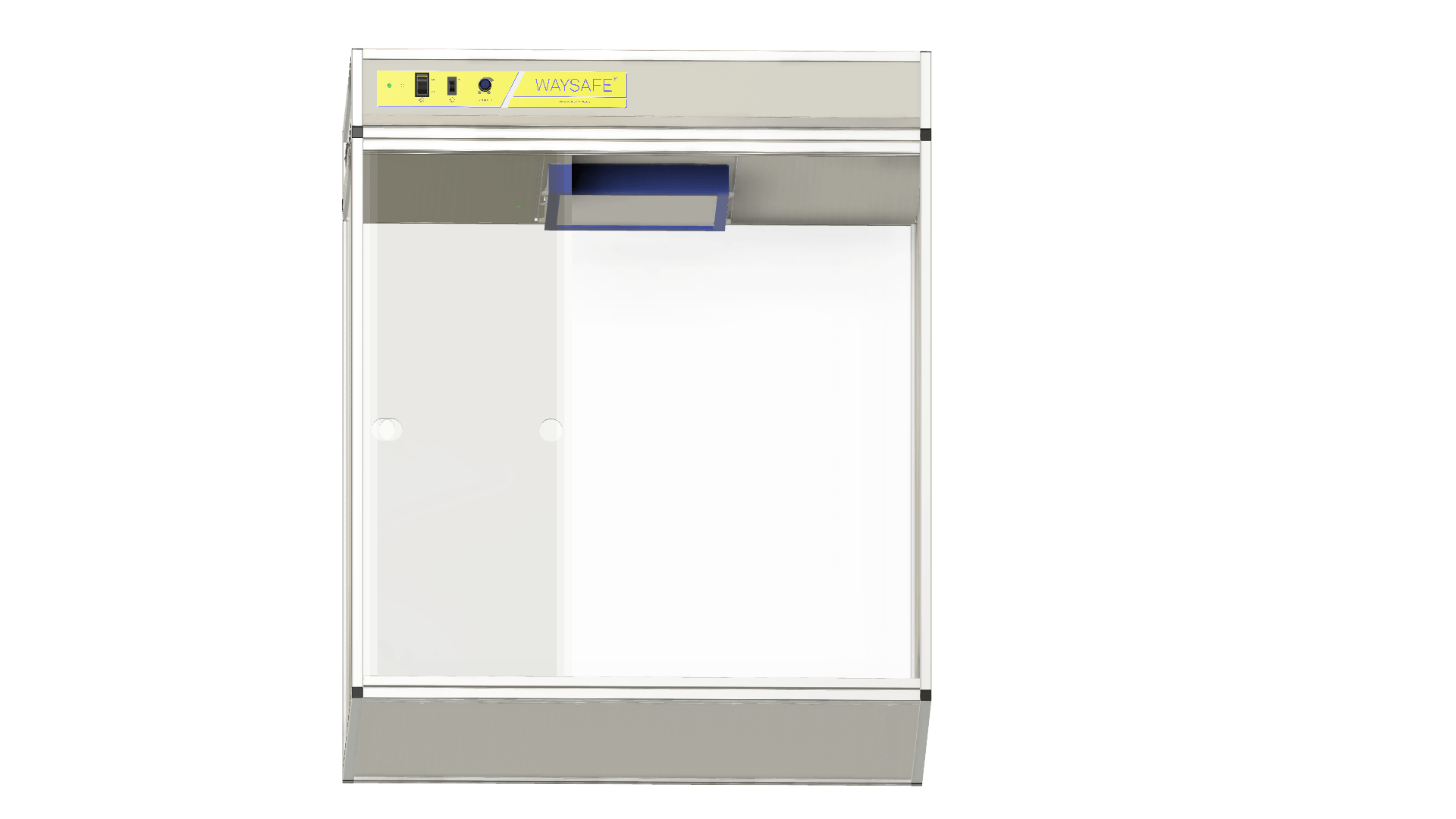

Evaporator Enclosure (EV700-1300)

Initial Price £3,514.50

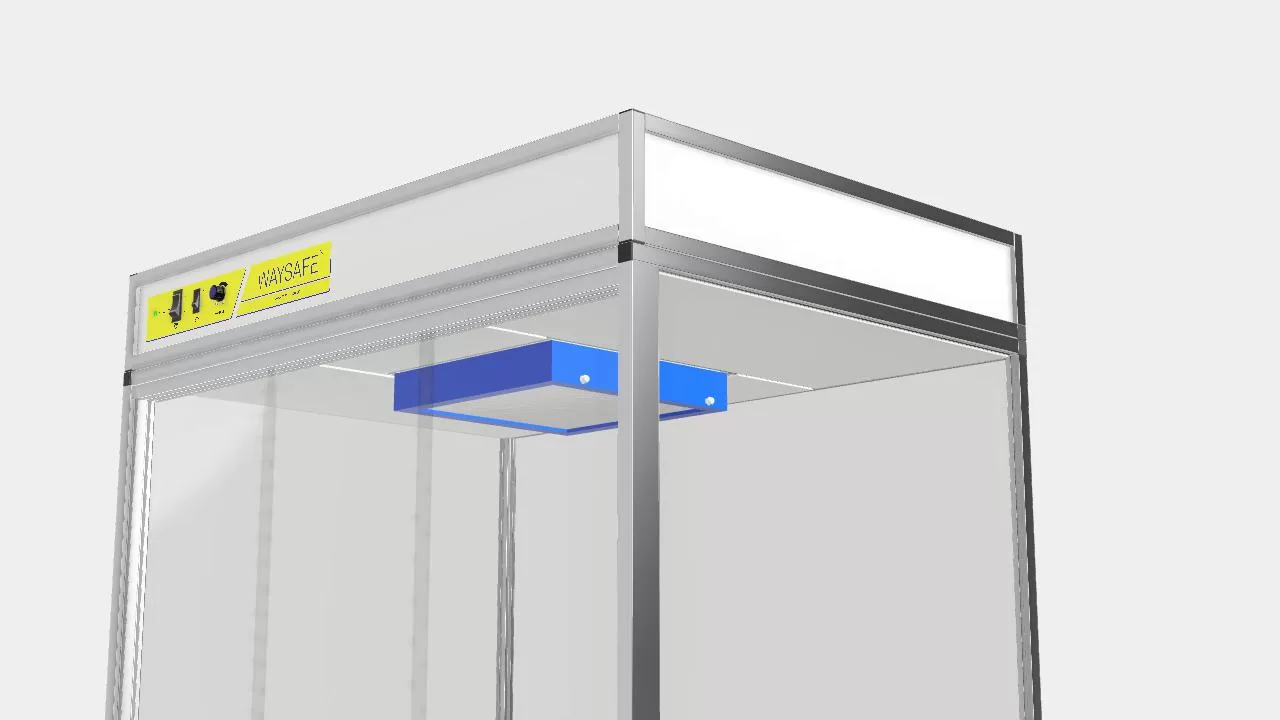

Originally designed for housing evaporator apparatus, the Waysafe® EV1000 solves the problem of personnel exposed to volatile organic compounds during evaporation or other processes and can be fitted with a Waysafe® Carbon filter and G4 Grade pre-filter .

Clear sliding front door panels allow for full height access loading, pre-filter changing and cleaning whilst providing an unobstructed, illuminated view.   With the doors closed the apparatus and internal work area is kept free of dust and nuisance odours during operation if fitted with a Waysafe® Carbon Filter.

View Data Sheet: SD00208-rev1-EV1000 Data Sheet

This enclosure is incredibly versatile and can be configured to remove particulates when fitted with our compatible Waysafe HEPA and HEPA/Carbon composite filters.  It can be ordered off the shelf in a variety of widths but can also be designed in any size you may require via our bespoke enquiry page https://www.waysafe.co.uk/bespoke/

EV1000 Configuration Options

  • To be kept hidden
  • £ 0.00
    To be kept hidden

The Waysafe EV1000 solves the problem of personnel exposed to volatile organic compounds during evaporation or other processes and can be fitted with a Waysafe® Carbon filter and G4 Grade pre-filter .

Clear sliding front door panels allow for full height access loading, pre-filter changing and cleaning whilst providing an unobstructed, illuminated view.   With the doors closed the apparatus and internal work area is kept free of dust and nuisance odours during operation if fitted with a Waysafe® Carbon Filter.

This enclosure is incredibly versatile and can be configured to remove particulates when fitted with our compatible Waysafe HEPA and HEPA/Carbon composite filters.  It can be ordered off the shelf in a variety of widths but can also be designed in any size you may require via our bespoke enquiry page https://www.waysafe.co.uk/bespoke/

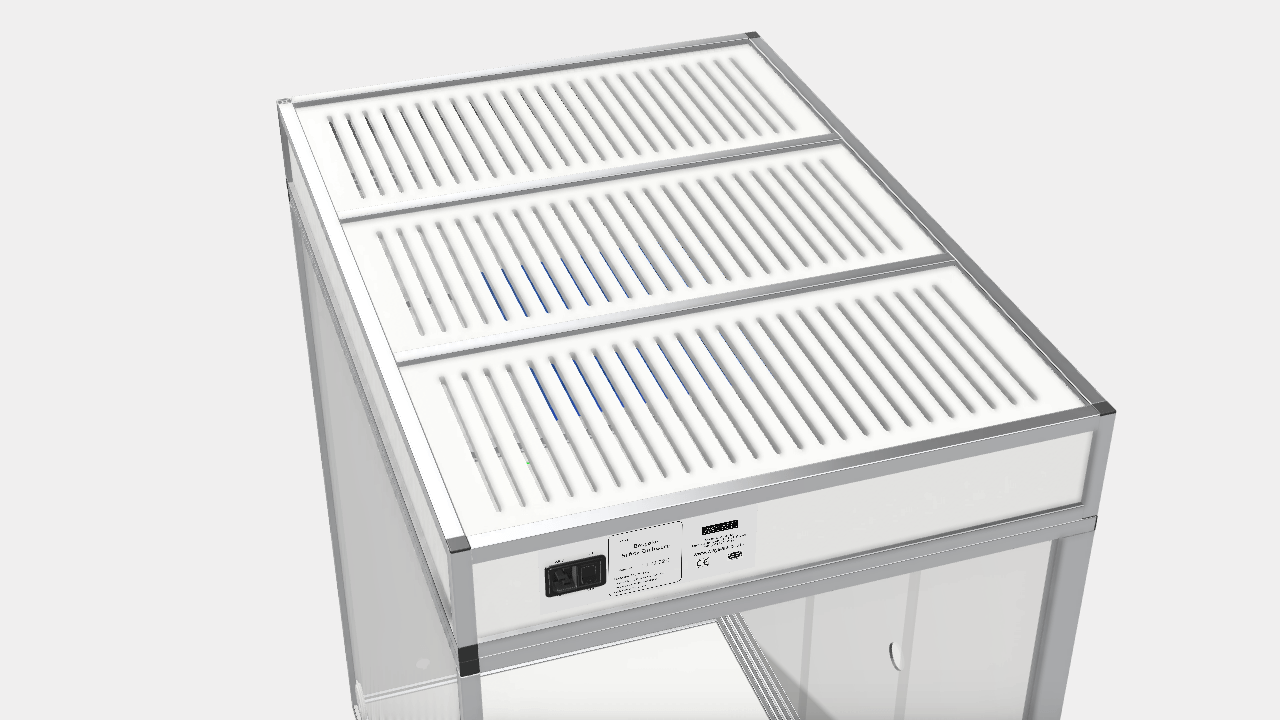

Our new Waysafe® ‘600 series’ filter system offers a larger filter and pre-filter combination and is available as an upgrade if required.   The Waysafe® EV1000 provides a variable speed airflow between 0.25m/s and 0.6m/s, this ensures operator protection without effecting sensitive instruments or operations.

  • Ductless – air is filtered and clean air circulated back into the workplace
  • Various filter media avaiable to deal with VOCs and / or particulates
  • Easy ‘plug and play’ benchtop installation
  • Highly customisable to suit your needs
  • Quiet, energy efficient variable speed fans
  • Fast global delivery
  • Operator protection
  • Ideally suited for evaporation process and apparatus containment
  • Great for applicatiosn that don’t justify a full fume cabinet installation
  • 230v and 120v versions available
  • Made to order in our factory in the UK

View Data Sheet: SD00208-rev1-EV1000 Data Sheet

Additional information

Electrical

230VAC 1 00w, meets LVD and is CE Marked (120VAC available)

Air Speed

User configurable – In the region of 0.3 m/s with one door open.

External Dimensions

Height 1150mm, depth 700mm, width 1000mm – Not quite your size? Just ask us!

Filter

Compatible with all WAYSAFE Filter media (HEPA, HEPA/ CARBON, CARBON)

Pre-Filters

Fitted as standard (simple low cost G4 grade filter pads protects the main filter from large particles to extend service life)

Weight

<>35Kg with carbon filter installed

Description

BaseAluminium Composite Basepanel
GlazingCast Acrylic Glazing
FrameDurable Anodised Aluminium
Filter FramePowder Coated Aluminium Frame
AncillariesRobust Fixtures, Durable Hinges
Built-in Base AlternativesVarious colour options including blue, red, white and stainless steel
Powder Coat FrameworkTo suit top pan or analytical balances
Auto-Flow ControlAutomatic flow control compensates doors being opened and alarm detects low airflow
LightingLED, Germicidal, UV, alternative colours.
FiltersVarious filter options include HEPA for particulates and larger sizes.
Low Flow AlarmBuilt in alarm to detect low airflow, User configurable.
Hours Run MeterElectro-mechanical, non-resettable run meter for filter and service monitoring
