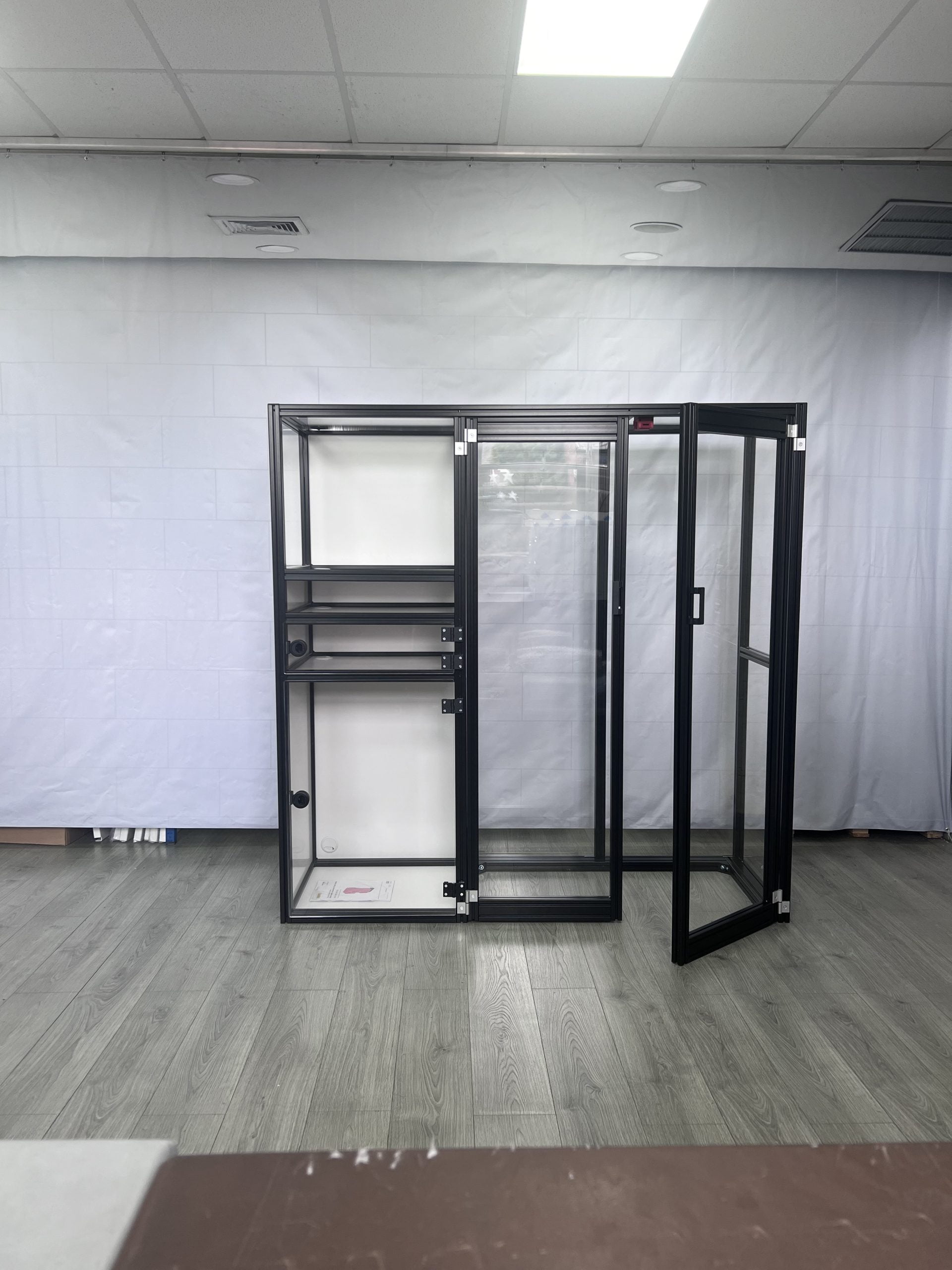

Safety Cabinet (aluminium)

40×40 very durable anodised aluminum framework with wardrobe style double doors.
(also available in fully insulated composite framework)

Some examples of what we can do-
we are not limited to these whatever you need- just ask!

- - Interlocking doors
  - Negative pressure or positive pressure fan and filtration
  - cable entry ports (standard 53mm)
  - Filters for dust, odours or both in grades to suit most applications
  - Fans and controls in mains AC or low voltage DC
  - Glazing in Perspex, toughened glass, aluminium ,soundproof
  - lift off access doors
  - Internal lighting
  - Fully welded stainless steel or powder coated mild steel frames and table bases
  - Tailored operator, cable or equipment access holes
  - 3rd party and free issue equipment installation
  - light stacks
Name/company *
First
Last
Email *
Size Required (mm) *
Special Requests

40×40 very durable anodised aluminum framework with wardrobe style double doors.
(also available in fully insulated composite framework)

Safety Interlock (available add-on)

Our interlocking door system prevents the enclosure being opened when testing is underway. Eliminating contact with dangerous currents and high voltages contained within the testing area.

Alternative Interlock configurations are available.

With safety interlock add on helps meet EN50191 standard for the Erection & Operation of Electrical Test Equipment.

• Delivered Fully Assembled
• Easy benchtop installation
• Low maintenance
• Wardrobe style doors
• Fast global delivery
• Protects operators
• Apparatus/ small-medium sized machine containment enclosure
• 3D Printer enclosure.
• Custom sizes available
• Made to order at our factory in the UK
• UK and international variants available

Additional information

PNEUMATIC INTERLOCK	SMC Roller Lever Pneumatic Relay Control Valve Switch [VM131-01-01A]
CIRCUIT INTERLOCK	Allen Bradley Guardmaster Trojan 5 [440K-T11467], Passive, keyed actuation, M20 cable gland fitted
LATCHING INTERLOCK	(1NC/1NO + 1NC/1NO) -Model: IDEC HS5L [HS5L-VA44M-G], 24VDC, Spring Lock, keyed actuation, M20 cable gland fitted

Description

Base: Polypropylene, Embossed (Black)	Good electrical insulation, not for use with heavy components
Base: Particleboard, Laminated (White)	Hardwearing, spills and grease are easy to wipe clean, support for heavier components, replaces the default base.
Panels	Clear polycarbonate glazing
Frame	Durable Anodised Aluminium or Black composite fully insulated
Cable Access	4 x 53mm cable ports (other size available)
Ancillaries	Durable Hinges and Fixings

No Base/Alternative Base	Various options including solid polypropylene, stainless steel, white ACM and more
Left or Right Side Door	Full size opening side door (Only available with Built-in base)
Alternative Glazing	Bespoke panels available to suit varying equipment types [Cast Acrylic Glazing, Anti-static]
Safety Interlock	Various solutions available
Basic Key Lock	Lockable front cover prevents unwarranted access. Supplied with 2 keys
And More	Traffic Light indicator stack, rack mounted hardware fixing points
